Introduction

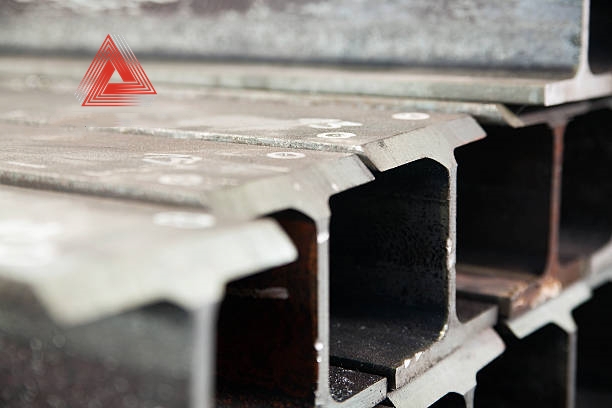

There are many product specifications of H-beams, and the classification methods are as follows.
(1) According to the flange width of the product, it is divided into wide flange, medium flange and narrow flange H-beams. The flange width B of wide flange and medium flange H-beam is greater than or equal to the web height H. The flange width B of narrow flange H-beam is approximately equal to one-half of the web height H. The flange width of narrow flange H-beam is approximately equal to the web height H.
(2) According to the product use, it is divided into H-beam, H-beam column, H-beam pile, and very thick flange H-beam. Sometimes parallel-legged channels and parallel-flange T-beams are also included in the range of H-beams. Generally, narrow flange H-beam is used as beam material, and wide flange H-beam is used as column material, according to which there are beam H-beam and column H-beam.
(3) According to the production method, it is divided into welded H-beam and rolled H-beam.
(4) According to the size specification, it is divided into large, medium and small size H-beams. Usually, the products with web height H above 700mm are called large, 300-700mm are called medium, and those less than 300mm are called small. By the end of 1990, the world's largest H-beam web height of 1200mm and flange width of 530mm.

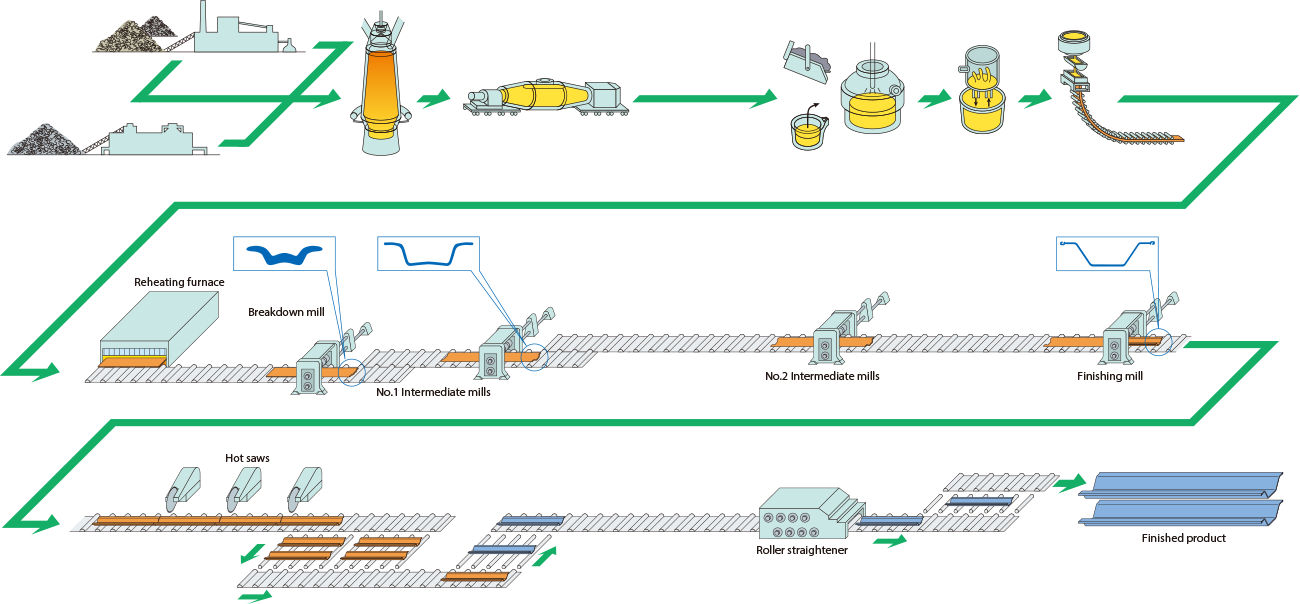

Manufacturing Process
Specification
Spec | L | W | Web Thickness | Flange Thickness | Weight | |
HE100 | HE100A | 96 | 100 | 5 | 8 | 16.7 |
HE100B | 100 | 100 | 6 | 10 | 20.4 | |
HE120 | HE120A | 114 | 120 | 5 | 8 | 19.9 |
HE120B | 120 | 120 | 6.5 | 11 | 26.7 | |
HE140 | HE140A | 133 | 140 | 5.5 | 8.5 | 24.7 |
HE140B | 140 | 140 | 7 | 12 | 33.7 | |
HE160 | HE160A | 152 | 160 | 6 | 9 | 30.4 |
HE160B | 160 | 160 | 8 | 13 | 42.6 | |
HE180 | HE180A | 171 | 180 | 6 | 9.5 | 35.5 |
HE180B | 180 | 180 | 8.5 | 14 | 51.2 | |
HE200 | HE200A | 190 | 200 | 6.5 | 10 | 42.3 |
HE200B | 200 | 200 | 9 | 15 | 61.3 | |
HE220 | HE220A | 210 | 220 | 7 | 11 | 50.5 |
HE220B | 220 | 220 | 9.5 | 16 | 71.5 | |
HE200 | HE200A | 190 | 200 | 6.5 | 10 | 42.3 |
HE200B | 200 | 200 | 9 | 15 | 61.3 | |
HE220 | HE220A | 210 | 220 | 7 | 11 | 50.5 |
HE220B | 220 | 220 | 9.5 | 16 | 71.5 | |
HE240 | HE240A | 230 | 240 | 7.5 | 12 | 60.3 |
HE240B | 240 | 240 | 10 | 17 | 83.2 | |
HE260 | HE260A | 250 | 260 | 7.5 | 12.5 | 68.2 |
HE260B | 260 | 260 | 10 | 17.5 | 93 | |
HE280 | HE280A | 270 | 280 | 8 | 13 | 76.4 |
HE280B | 280 | 280 | 10.5 | 18 | 103 | |
HE300 | HE300A | 290 | 300 | 8.5 | 14 | 88.3 |
HE300B | 300 | 300 | 11 | 19 | 117 | |
HE320 | HE320A | 310 | 300 | 9 | 15.5 | 97.6 |
HE320B | 320 | 300 | 11.5 | 20.5 | 127 | |
HE340 | HE340A | 330 | 300 | 9.5 | 16.5 | 105 |
HE340B | 340 | 300 | 12 | 21.5 | 134 | |
HE360 | HE360A | 350 | 300 | 10 | 17.5 | 112 |
HE360B | 360 | 300 | 12.5 | 22.5 | 142 | |
HE400 | HE400A | 390 | 300 | 11 | 19 | 125 |
HE400B | 400 | 300 | 13.5 | 24 | 155 | |
HE450 | HE450A | 440 | 300 | 11.5 | 21 | 140 |
HE450B | 450 | 300 | 14 | 26 | 171 | |
HE500 | HE500A | 490 | 300 | 12 | 23 | 155 |
HE500B | 500 | 300 | 14.5 | 28 | 187 | |
HE550 | HE550A | 540 | 300 | 12.5 | 24 | 166 |
HE550B | 550 | 300 | 15 | 29 | 199 | |
HE600 | HE600A | 590 | 300 | 16 | 25 | 178 |
HE600B | 600 | 300 | 15.5 | 30 | 212 | |
HE650 | HE650A | 640 | 300 | 13.5 | 26 | 190 |
HE650B | 650 | 300 | 16 | 31 | 225 | |
HE700 | HE700A | 690 | 300 | 14.5 | 27 | 204 |
HE700B | 700 | 300 | 17 | 32 | 241 | |
HE800 | HE800A | 790 | 300 | 15 | 28 | 224 |
HE800B | 800 | 300 | 17.5 | 33 | 262 | |
HE900 | HE900A | 890 | 300 | 16 | 30 | 252 |
HE900B | 900 | 300 | 18.5 | 35 | 291 | |
HE1000 | HE1000A | 990 | 300 | 16.5 | 31 | 272 |
HE1000B | 1000 | 300 | 19 | 36 | 314 |
